- Size: 30
- Place of Origin: China
- Brand Name: Shouheng
- Model Number: COATING MACHINE
- Weight: 2000.000 kg
Machine Description:

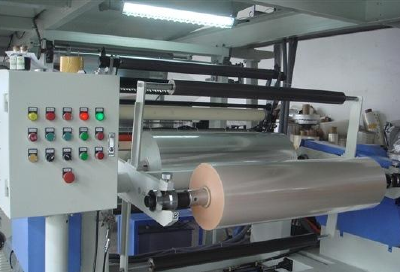

TBBZ series wallpaper coating line is designed for PVC coating on pure paper and non-woven paper.
Machine Parameter:
Item | Values |
Web material | Paper 70~120g/m2 Non-woven paper 110-170 g/m2 |
Mechanical speed | Max. 80m/min |
Operation speed | Max. 60m/min |
Width of web | 850mm |
Width of guide roller | 900mm |
Max unwind / rewind diameter | φ1100mm/φ1100mm |
Heating method | Oil heating Gas heating |
Total power | 85KW |
Coating precision | 0.005mm |
Equipment demand | Power supply : 380V,50HZ , Air pressure : 0.7Mpa Cooling water : 4T/Hr Max temperature30 °C |
Machine Features:
l Coating thickness automatic adjustment
l Oven unit include five zones, every zone has independent heating exchange to control temperature, high efficiency.
l Variable frequency motor drive the cooling roller, cooling roller inner is twist current to strengthen cooling effect.
l Double work station with swing rotator, automatic rotator and orientation control.
l Automatic reel-change without stopping the machine.
